Manufacturer: JH

Features:

• - Energy efficient, automatically varies its power output in response to pipe temperature changes
• - Easy to install, can be cut to any length (up to max circuit length) required on site with no wasted cable
• - Lower installed cost than steam tracing, less maintenace expense and less downtime
• - No overheat or bumout even when wrapped over itself (overlapped)
• - Suitable for use in non-hazardous, hazadous and corrosive environments
• - JH power connection, splice, tee and end seat kit will reduct installation time

Description:

HTLe increasing or decreasing the heat out put in a self regulating way depending on the change of the ambient temperature, so a thermostat may not necessary in some applicaitons and it will never overheat or burnout even when wrapped over itself (overlapped). With optional outerjacket, the heating cable is resistant to watery and inorganic chemicals and protect against abrasion and impacted amage. HTLe is suitable for use inexplosion-haz-ardous areas up to a maximally admissible work-piece temperature of + 65 Celsius Degrees. JH provide termation, power connection, splice, tee and end seal kit will reduce installation time and require no special skills or tools.

Applications:

HTLe is UL listed self-reglating paralle heating cable (heating tape) is designed for residential and commercial metal and plastic pipe freeze protection and roof and gutter de-icing applications. It is ideal for use in maintaining fluid flow underlow ambient. Freeze protection and low watt desity process temperature systems such as pipelines, fire protection, process water, dust suppression systems, hot water and structure anti-icing are typical applications for this product. A UV stablized thermoplastic elastomer overjacket is provided to cover the braid for wet applicaiton and exposure to the sun.

Sub-category:

• - HTLe ... C : Tinned copper braid provide additional mechanical protection and a positive ground path
• - HTLe ... CR : Flame retardant thermoplastic overjacket protect against certain inorganic chemical solutions, it also protect against abrasion and impact damage
• - HTLe ... CT : High Temperature Fluoropolymer overjacket are used for exposure to organic or corrosive solutions or vapours may be present

Specifications:

• - Service Voltage : 110-120 V, 220-277V
• - Maximum Maintain or Continuous Exposure Temp  (Power on) : + 65 Celsius Degrees/+ 149 Fahrenheit Degrees
• - Maximum Intermittent Expsoure Temp (Power on/off, 1000 Housr) : + 85 Celsius Degrees/+ 185 Fahrenheit Degrees
• - Minimum Installation Temp : - 40 Celsius Degrees/- 40 Fahrenheit Degrees
• - Protective Braid Resistance : < 18.2 Ω/km
• - Bus Wire Guage : 16AWG
• - Approvals :

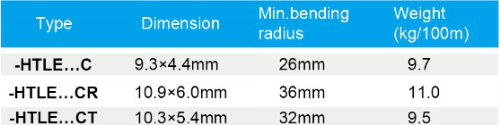

Dimension and Weight:

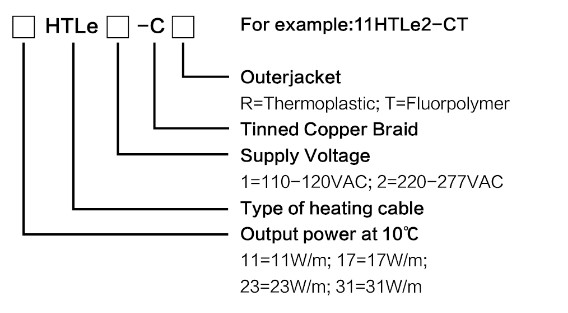

Product Ordering Information:

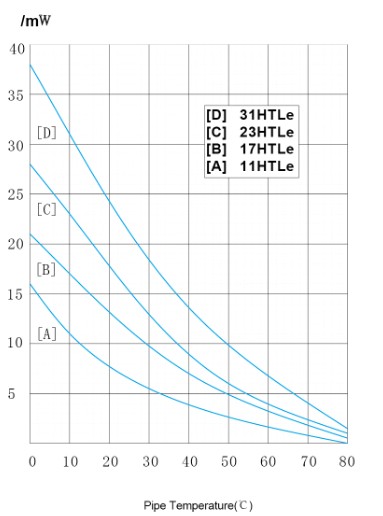

Power Output Curves:

Normal power output at 230V when HTLe installed on insulated metal pipes

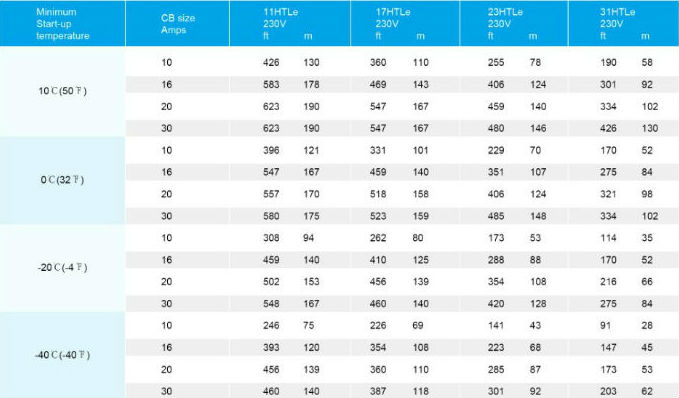

Maximum Lenght(M) vs Circuit Breaker Size:
